Enjoy an interactive demonstration of our King Super 20 tenor restoration. It’s a perfect match to the Super 20 alto restoration we did recently.
There’s something very special about Coltrane era SBA tenors. The way the palm keys speak. The incredible power of the bottom end. These horns are just so expressive. This particular model was assembled in Europe. It was in lovely cosmetic condition with the silver at almost 100% and no damage anywhere. But it was missing its edge and not delivering its full potential.
Things started to change after the bell was soldered to the bow. Then, after a lengthy search, a complete set of original Selmer Tone-X metal resonators were installed on Pisoni Pro pads. That helped take it to the next level. A custom setup finished the job. Oh man. Now you’re talking.
It’s truly a joy for me to rebuild a fine vintage horn and there are so many of them out there. Each one deserves to be heard at its absolute best. This one will put a smile on anyone’s face.
I just love baritones. This one was certainly no exception. What a privilege it was to help preserve something with this historical value.
The top bow was a mess, which was compounded by the fact that Adolphe Sax horns are made from such thin gauge brass. Reforming the shapes is very tricky business. The bell flare left a bit to be desired but the final product was as true as the day it left Sax’s shop in Paris. The bell also carried incredible engraving. The challenge was to regain the beautiful curves of the form without losing the sharpness of the typography.
The poor body tube took its fair share of knocks as well. The brace was deformed and the overall oxidation had to be eliminated without compromising the super light metal. The F# tone hole had seen better days. I literally had to remove it from the body tube. After cleaning up all the decayed old lead solder and straightening the body tube, I could put it back where it belonged.
The end result is a thing of beauty and a joy to play. After all, what could feel better than a baritone that weighs less than a tenor.
Necks are a wear point. Tips can get out of round from the stress of putting on and taking off mouthpieces. Sometimes necks get pulled down. Or damaged from a fall. There is the occasional microphone pick-up that needs to be removed. The tenon can get distorted and not seal properly. I've even had to replace the last inch of an alto neck. Regardless, a damaged neck is bad news for your sound.
The neck is the most important part of the saxophone. It’s right there at the beginning of the instrument and its role in delivering air to the rest of the horn cannot be underestimated. Each one has its own unique shape, taper, dimensions and angles. And each brand has a different approach. The only way to know what’s correct is to measure good samples – there is no book that lists all the data. Over the last two decades I have measured countless necks and have created my own library. It’s the basis for my restoration process. I never guess.
I’ve restored thousands of necks for shops and individuals. To help get the job done, I have created custom sleeves that are tapered to match factory specs perfectly. I have a set of 100 shaping balls that I use just for necks. I make things round. I replace rings. I replace tenon/receiver sets. I get the angles right. Every nuance. Every time.
Join us for an evening of live music, conversation and a chance to check out the new TM Custom line-up and D’Addario products.
Wednesday March 23, 2016
7:00 – 8:00 PM
Barnard Instrument Repair
329 10th Avenue SE
Cedar Rapids, IA 52401
Doug Lawrence has performed on six continents at virtually every major concert hall, jazz club and jazz festival in the world, and now, thanks to TM Custom Saxophones and D’Addario, he’s coming to Barnard Instrument Repair.
He has spent over 20 years making a name for himself in New York City. Among the artists Doug has performed and recorded with include – Ella Fitzgerald, Benny Goodman, Aretha Franklin, Tony Bennett, Dizzy Gillespie, Ray Charles, Sarah Vaughan, Frank Sinatra and the list just goes on.
As the featured tenor saxophone soloist with the Legendary 18-time Grammy award winning Count Basie Orchestra, Doug is definitely the man. The Basie Orchestra has won more awards, polls and Grammys than any other jazz big band in history.
Doug Lawrence – New Organ Trio is Doug’s latest recording (Cactus Records 2015). Joining Doug on this recording are long-time associates Dan Trudell on Hammond B3 and George Fludas on drums with special cameo appearances by Taurus Lovely and Jeff Parker. Doug’s previous recordings as leader include the critical and commercial hits – Soul Carnival (#3Jazz Charts USA), High Heel Sneakers (#11 Jazz Charts USA) and Street Wise (Top 25 Jazz Albums of Year Japan).
Doug will be available for an hour before and after he plays for questions. You’re not going to want to miss this special night of music.
Plus get hands-on with the new TM Custom tenor and alto saxophones and mouthpieces as well as the whole line of D’Addario reeds, mouthpieces and neck straps.
This was one of the ugliest Series 2 King Super 20 altos I’ve ever seen. Someone had replaced the Bb/B key guard with an extended nickel plated one that covered C# as well. Which meant the guard feet had to be moved leaving bare spots in the lacquer. A really bad spot fix covered them up but filled in the gorgeous original engraving in the process. What a shame. It sure had its fair share of bumps and bruises to complement the nasty cosmetics.
But it had such a nice sound and all those pearls everywhere. Plus Cannonball played this vintage on so many great albums. I had an idea. Strip this horn and reveal the true beauty of what was underneath. Let it resonate for all its worth. Put back on the original guard. Resolder the guard feet to eliminate any body tube stress. Slip in some slightly oversized flat nickel resonators for a little extra punch. Use the best Pisoni Pro pads. It was gonna be good.
We decided to push the project just a little bit further. Since the lacquer was being chemically stripped (with absolutely not one touch of a buffing wheel), why not put the original Series 1 engraving pattern on the bow and C/C# pad cups? Sherry Huntley of Artistic Engraving did the work and it is absolutely beautiful.
The setup is pretty much wide open. With a Meyer Brothers NY 5M, this horn makes a serious statement. It’s so much fun to play. It’s so alive in your hands. And those amazing pearl palm and side keys feel so special on your fingers. I just love this horn. Cosmetically? Let’s just say it transformed into a closet horn that you can actually play without worrying about scratching the lacquer.
The owner is so happy with this project that we’ve matched it with a tenor of the same vintage. See the finished project and get the low-down.
The Aaron Barnard Bare Naked Brass Restoration is the ultimate expression of freeing a saxophone for maximum vibration. It enables an instrument to realize its full potential in terms of performance from the perspective of resonance and the quality of sound produced.
To learn more about the benefits of stripping, download this PDF.
It was tricky. Here was the perfect “closet horn” without a blemish. The owner loved the way it looked and truly appreciated its remarkable cosmetic condition. But he also really wanted to be able to experiece the sound that gave this classic Cleveland King Super 20 SilverSonic its reputation.
The secret sauce for this tenor was going to be slightly oversized sterling silver resonators. What else would suit the sterling neck and bell better? A set of Pisoni Pro pads completed the picture and would do the sealing for years to come.
The result? No scratches. No discolored pad cups. No marred screw heads. Perfection. And then some. Plus now it played like it was always intended to. After custom-dialing in the pad heights and spring tension, this old King blew the doors down.

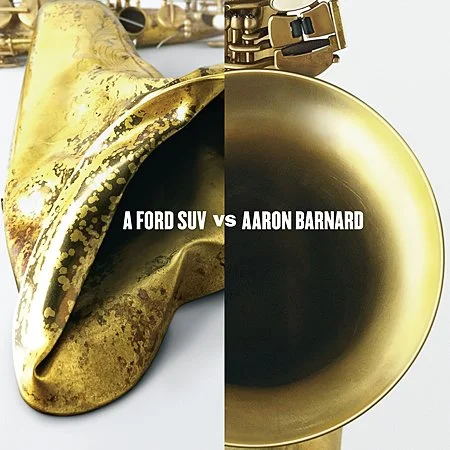

Hard to believe anything with such potential could end up stranded on a driveway and then run over by an automobile. This Brecker era tenor pushed the edges of what’s possible from a restoration perspective and was perhaps the greatest overall challenge I’ve had to date.
The upper body was literally pancaked – at least when it came into the shop. Making the tube round again without overstressing the brass required painstaking manipulation and really understanding its nature. Tone holes have to be flat and true or the pads just won’t seal. Rods, posts, and key work have to fit squarely, precisely, and function perfectly.
A horn of this vintage needs to deliver an extraordinary sound. At the end of the day, it did. The transformation took enormous effort and literally took the owner’s breath away.
A saxophone that leaks at the neck does not play the way it should. This particular SML tenon and receiver was a mess. It was expanded to the point where it had cracks and was horribly out of round.
In replacing a tenon/receiver, the goal is to create an optimum fit that is perfectly round and is absolutely smooth at all transition points. The fit from the neck to the tenon and from the receiver to the body tube is stable and looks original. Soldering is touchy if you don’t want to damage existing lacquer or plating on the neck and body tube.
This SML was silver plated so I was able to plate the new pieces to match the rest of the horn perfectly before soldering. With lacquered horns, I patina the new pieces to match the horn and then apply lacquer to the tenon/receiver for as close a match as possible.
Let’s go back in time. To almost the very beginning, when Adophe Sax invented the saxophone in 1846. This set of horns is from before the American Civil War. It took Mark Overton years to find them for his SaxQuest Museum in St. Louis. I had the great opportunity to return this family to its original grandeur.
Challenges abounded. Adolphe Sax saxophones are made from very thin brass that is incredibly brittle and difficult to work with. In fact, it was not uncommon for the factory to crack and patch horns during original manufacturing. Because the hinge tubes are made from rolled sheet stock, swedging requires the most careful adjustment to avoid splitting them. Pad cups are much more delicate than a modern or even vintage horn.
Not disturbing the intricate engraving on the bell while removing dents was really tough, but softening the typography was not an option. I had custom white leather pads made for each horn. And of course, each sax had over 150 years of oxidation that needed to vanish.
This remarkable, preserved family can be seen at the SaxQuest Museum. It’s definitely worth the visit.
This Saxello was beautiful. It just had a really bad kink in the neck. But no worries, with a bit of persuasion and a steady approach, things were returned to the level of the rest of the instrument.
The King Saxello is a rare bird. Not many were made and it was very satisfying to have this one restored.
While this 130xxx Mark VI baritone was a great player, mechanically and cosmetically it had been around the block more than a few times. The bow guard was a disaster but a vintage replacement guard I happened to have in stock improved things dramatically.
The top bow wasn’t as sad as the bottom bow and the body tube was anything but straight and true. It leaked, the keys were loose, and the pads were shot. In short, everything needed attention.
Fitted with oversized metal resonators and premium pads, this bari turned out to be one nasty monster and made its post-rebuild debut on the hit TV show, “Louie.”
Nothing sounds quite like an old Conn Chu Berry – especially if it’s the gold burnished Artist model. However a characteristic of this vintage is that the ergonomics aren’t particularly user-friendly. The goal with this horn was to blend a classic 1920’s sax with more modern key work and enhanced performance.
First I modified the keys for better positioning and then matched the original gold finish. I also removed the trill keys and reversed the spring. Less weight improved the ease of the action and enabled the player to get around the horn quicker. As a final step, I brought back the original lustre of the burnished gold entirely by hand.
These old horns are beautiful and have such a distinctive sound. The end result blended that incredible Conn quality with easier ergonomics.
Very, very carefully. What seemed like a good idea for an economical, alternative material in the 1950’s presents quite an undertaking to restore today.
The plastic in the body tube of a Grafton won’t dent, but it will crack and will melt. Graftons don’t use needle springs, rather wound springs like in a watch. Lots of fun to take apart, put back together, and adjust. Spares aren’t available. Lots of patience is required. I’ve restored about a half dozen of these horns. Each time I’m relieved when they’re done.
This particular alto was a great example to save. Now it plays as good as it looks.
This is the front F key for a Selmer Balanced Action. It just wasn’t there when I received the horn. I had to fabricate a new one to make this saxophone whole. The patina needed to match the horn, as did the new lacquer. The rocker arm had to line up perfectly. My goal was not to make it look good. Rather to make it look absolutely original.
My customer forgot that I had to fabricate a new key when he saw the finished product. I created a new F key that blended into the existing key work. Mission accomplished.
This is one magnificent gold burnished Conn from the very early 1920’s. But the wind god on the bell was blowing up a storm because of some very ugly dents on the bell. The complete mechanical restoration included making those dents disappear. My goal was to smooth out the surface but not at the expense of the original burnished gold plating. Time, patience and just the right feel got the job done.
Some of the rods and posts on this golden beast were beyond stubborn. There was cutting, grinding and fabrication to make it come together. The finished product sounded exactly the way it should. Big. Bold. Powerful. Pure gold.
Our Master Class/Clinic with Frank Catalano was quite an evening. He debuted his latest project with David Sanborn, Old Skool, where they are paying tribute to his mentors growing up in Chicago – Von Freeman, Eddie Harris, and Stanley Turrentine. After Frank played, there was a Q&A.
Now 37 years old, Catalano is the only known saxman to have performed with Miles Davis, Randy Brecker, Charles Earland, Elvin Jones, Stan Getz, Betty Carter, Von Freeman, Tito Puente, Tony Bennett, Les Claypool and Louis Bellson while still in high school! This led to his signing to Delmark Records at age 18 and a string of critically-acclaimed recordings. Catalano has been heard by millions of people all over the world, thanks in part to 3 Grammy-winning and 11 Grammy-nominated recordings with artists such as Jennifer Lopez, Destiny’s Child, and John Legend. He has also performed live on the Oprah Winfrey TV show with singer/composer Seal.
No stranger to adversity, Frank cut off his right middle finger in an automobile accident. After several surgeries and much effort, Catalano relearned his signature technique, making him one of the most in-demand musicians today.
Sometimes the best offense is a good defense. This Martin Baritone Saxophone’s Eb key guard is proof positive of that. It did its job for the Eb key and for the body of the sax. Because of its sacrifice, it had to be rebuilt.
It came to me in pieces, literally. I was able to use part of the original guard, but I still had to re-create the rest of it. The goal was to have it look as though nothing had ever happened. That meant getting all the measurements and angles correct. I finished the project by silver plating the guard to match the horn. With the project completed this horn was ready for action.
